PS5 HDMI Port Repair Cost: What You Should Pay in the US
By PadProTools Editorial Team
Last reviewed: July 23, 2026
A PS5 HDMI port repair usually costs about $120 to $200 in the United States. A clean port replacement may be advertised for as little as $99, while jobs involving lifted pads, broken motherboard traces, or HDMI circuit damage can cost $200 or more.
Current US repair listings show prices ranging from $99 at some local shops to about $189 for mail-in or fixed-price services. These are advertised prices, not a guaranteed national rate. Your final bill depends on what the technician finds after opening and testing the console.
Quick Cost Guide
| Repair condition | Expected price | What may be required |
|---|---|---|
| Clean HDMI port replacement | $99–$150 | Remove the broken port, install a new one and test the output |
| Port replacement with lifted pads | $150–$190 | Rebuild damaged solder connections before fitting the port |
| Broken traces or previous repair damage | $170–$220+ | Trace reconstruction and extra board work |
| HDMI encoder or signal-circuit fault | $180–$250+ | Chip-level diagnosis or component replacement |
| Diagnostic only | Free–$75 | Inspection when the repair is declined or cannot be completed |
These ranges are based on published US repair-shop prices checked in July 2026. One shop lists $149.99 plus tax, while two mail-in services list $189. Other repair guides place common PS5 HDMI work between $120 and $200.
How Much Does a Typical PS5 HDMI Port Repair Cost?
For most owners, a fair quote falls between $120 and $200.
The lower end normally applies when the connector is bent or loose, but the copper pads underneath are still intact. The higher end applies when the port has been pulled from the motherboard, traces are missing, or another shop has already attempted the job.
Some businesses advertise repairs for $99. That may be a genuine flat rate for a clean replacement, but you should still ask whether it includes diagnostics, parts, labor, testing, tax, shipping, and damaged-trace work. Several current listings use $99 as a starting or promotional price, while others charge $149 to $189.
A quote above $200 is not automatically unreasonable. The shop should explain why the job needs more than a port swap.
What Does the Repair Price Normally Include?
A proper quote should cover more than the replacement connector.
The technician usually has to:
- Open the console and remove its internal shielding.
- Remove the PS5 motherboard.
- Inspect the HDMI port, pins, solder pads, and nearby components.
- Desolder the damaged connector using controlled heat.
- Clean and prepare the board.
- Repair missing pads or traces when needed.
- Fit and solder the replacement port.
- Reassemble the console.
- Test the picture, sound, and connection stability.
Some shops also include a diagnostic check, cleaning, return shipping, or a repair warranty. Iron Point Repair, for example, lists free diagnosis, return shipping and a 90-day warranty in its $189 mail-in price. uBreakiFix advertises a free diagnostic and says most of its repairs include a one-year limited warranty, but it does not publish one nationwide PS5 HDMI price on its service page.
Ask for the full amount in writing before approving the work.

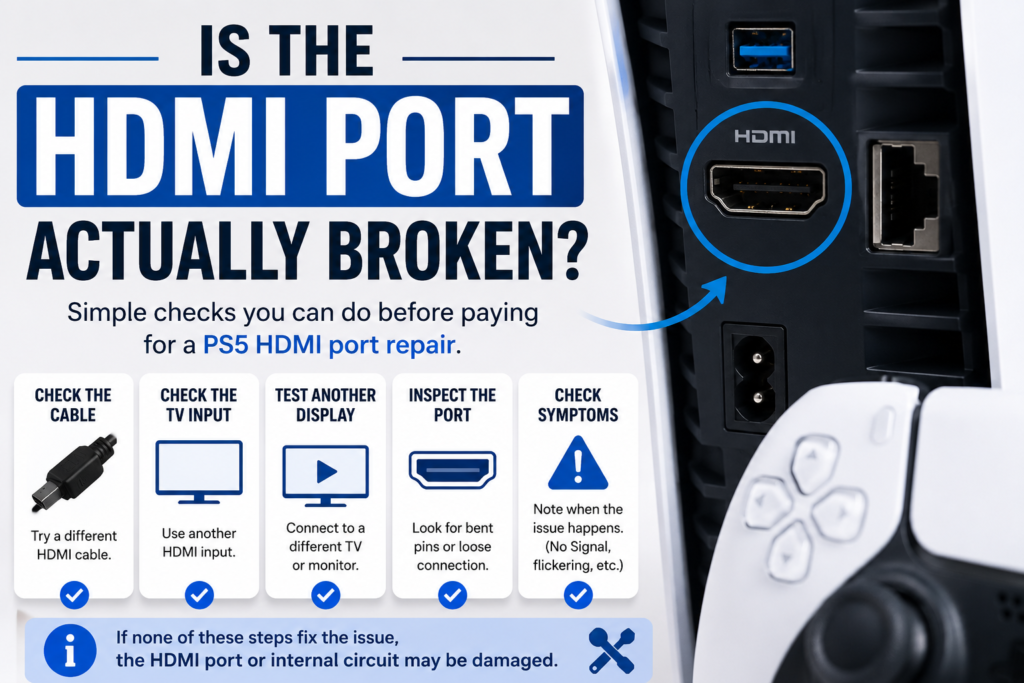

Is the HDMI Port Actually Broken?
A black screen does not always mean the HDMI connector needs replacement. First, check the cable, television input, and PS5 video settings. If the console also becomes extremely hot, makes unusually loud fan noise, freezes, or shuts down while gaming, follow our PS5 Keep Overheating guide before paying for an HDMI port repair.
Sony recommends checking the cable, using another HDMI input, and connecting the console directly to the screen before arranging a repair. The company also suggests testing a different cable and confirming that the correct HDMI channel is selected.
Try these checks before paying a diagnostic fee.
Try Another HDMI Cable
Disconnect the current cable and test another known-working cable.
Do not keep moving or twisting the connector while the PS5 is powered on. If the picture appears only when the cable is pushed upward or held at an angle, stop using the port. Continued pressure can tear the solder pads from the board.
Try Another HDMI Input
Move the cable to another input on the same TV.
A failed or incorrectly selected TV input can look like a console fault.
Test Another TV or Monitor
Connect the PS5 directly to another display when possible.
Remove soundbars, capture cards, receivers, splitters, and other devices from the signal path during the test. Sony also recommends a direct screen connection when troubleshooting missing picture or sound.
Look Inside the Port
Use a flashlight and inspect the connector without inserting metal tools.
Signs of physical damage include:
- Bent or missing internal pins
- A connector pushed deeper into the console
- A cracked plastic tongue
- A port that moves when the cable is inserted
- A cable that no longer fits straight
- Visible debris or an object blocking the connector
Do not scrape the pins with a screwdriver, pin, or knife.
Check the Symptoms
| Symptom | Possible cause |
|---|---|
| PS5 powers on but the TV says “No Signal” | Cable, TV input, port, video setting or HDMI circuit |
| Picture cuts out when the cable moves | Loose port, broken pins or damaged solder joints |
| Bent pins are visible | Physical port damage is likely |
| Port looks normal but no picture appears | Cable, settings or internal HDMI circuit fault |
| Console will not power on | The problem is probably not limited to HDMI |
| Picture is flickering or pixelated | Cable, connector, TV compatibility or signal-path issue |
Sony’s official troubleshooting page confirms that no-image faults can come from the connection, cable, display input, connected equipment or screen firmware, so the port should not be blamed without checking those first.
For the related PS5 display or hardware issue, see our PS5 HDMI not working guide.
Why Does My PS5 Show No Signal?
A damaged connector is one possible cause, but it is not the only one.
“No Signal” may be caused by:
- A loose or failed HDMI cable
- The wrong TV input
- A damaged TV port
- A soundbar, receiver, or capture device blocking the signal
- A video-output setting the display cannot show
- Bent pins inside the console
- Broken solder joints below the connector
- Damage to the HDMI signal circuit
A PS5 may still turn on, light up, and respond to the controller even when no image reaches the TV.
When the connector looks normal, the shop should test the full signal path before replacing it. Otherwise, you may pay for a new port that does not fix the fault.
What Makes the Final Bill Higher?
The physical connector is only one part of the job. Most of the price comes from labor, diagnosis, and motherboard work.
A Clean Port Replacement
This is the simpler case.
The old connector is removed, the board pads remain intact, and a new port can be installed without rebuilding connections. Shops may place this type of repair near the lower end of their range.
Lifted Solder Pads
Solder pads are the small copper contact points that connect the HDMI pins to the motherboard.
A hard pull can tear them from the board. The technician may need to rebuild those connections before installing the new connector.
That takes more time than a normal replacement.
Broken Motherboard Traces
Traces are thin electrical paths running through the board.
When a pad or trace is missing, the technician may use fine jumper wires to restore the connection. This is microscope-level work and should cost more than a clean port replacement.
Damage From an Earlier Repair Attempt
Previous DIY or low-quality work can leave:
- Burned board material
- Missing pads
- Bridged pins
- Loose components
- Too much solder
- Heat damage
- Scratched traces
- The wrong replacement connector
A shop may increase the quote after opening the console because this damage is not always visible from the outside.
HDMI Circuit Damage
A PS5 can produce no image even when the port looks fine.
The problem may sit elsewhere in the HDMI signal path. Current repair listings place advanced HDMI IC work above normal port-replacement pricing, sometimes at $220 to $249 or more.
Diagnostic Fees
Some shops diagnose the console for free. Others charge when you decline the repair or when the board cannot be fixed.
Ask whether the fee is:
- Included in the quoted price
- Waived when you approve the job
- Charged only when the console is not repaired
- Refundable if no fault is found
Shipping and Tax
Mail-in prices may include return shipping but not the cost of sending the PS5 to the shop.
Local rates may exclude sales tax. A $149 listing can become noticeably higher after tax, diagnosis, or added board work.
Why Is the Part Cheap but the Repair Expensive?
The connector itself may cost only a small amount compared with the total repair.
The PS5 HDMI port is attached directly to the motherboard. Replacing it requires the console to be stripped down, the board heated safely, the old connector removed, and the new pins aligned without damaging nearby components.
You are paying for:
- Board-level repair skill
- Microscope work
- Controlled hot-air removal
- Pin alignment
- Pad and trace inspection
- Reassembly
- Output testing
- The risk taken by the repairer
This is why comparing only the replacement-part price with the shop quote is misleading.
Where Can I Find PS5 HDMI Port Repair Near Me?
Search for a shop that handles microsoldering or board-level console repair, not only phone screens and battery replacements.
For the related PS5 display or hardware issue, see our PS5 cable specifications.
Before leaving the PS5, ask:
- Is the HDMI work performed at this location?
- Does the technician repair lifted pads and traces?
- Is there a diagnostic fee?
- Will I receive a written estimate?
- Will you ask for approval before extra work?
- What warranty covers the repair?
- How will the video output be tested?
- What happens if the console cannot be repaired?
uBreakiFix has more than 700 US locations and advertises free PS5 diagnostics. It also states that most repairs can be completed as soon as the same day, though actual timing and pricing will depend on the store and the condition of the console.
A nearby store is convenient, but location should not be your only deciding factor. Ask whether the board work is done in-house or sent to another facility.
Is Cheap PS5 HDMI Port Repair Safe?
A low price can be fair when the shop has fixed rates, low overhead, or a promotional offer.
The issue is not the number by itself. The issue is what the price leaves out.
Before accepting a cheap quote, check whether it covers:
- A new connector rather than reheating the old one
- Damaged pads and traces
- Parts and labor
- Full reassembly
- Video-output testing
- A written warranty
- Additional charges
- Tax and shipping
Do not assume a $99 repair is poor. Several real US shops advertise that amount. Also do not assume it will remain $99 after the console is inspected.
Port Replacement Is Not the Same as Reflow
Reflow means heating existing solder in an attempt to reconnect it.
That may help a cracked solder joint in some electronics repairs, but it does not replace bent pins, a cracked connector, missing pads or broken traces.
For visible physical damage, ask whether the old port will be removed and replaced.
A technician should be able to explain the planned work without using vague terms such as “heat treatment” or “quick HDMI fix.”
Local Shop, Mail-In Service or Sony?
| Repair route | Main benefit | Main drawback |
|---|---|---|
| Local independent shop | No shipping and easier face-to-face communication | Skill and warranty terms vary |
| Mail-in specialist | Access to board-level repair from anywhere in the US | Shipping adds time and transit risk |
| Sony service | Official service path | Accidental damage may not be covered |
| Large repair chain | Many locations and standard service policies | Price and board-level capability may vary by store |
| DIY replacement | Low parts cost | High risk of board damage |
How Much Does Sony Charge?
Sony does not publish one permanent nationwide HDMI replacement price on its public support pages. Owners are directed to the PlayStation Repairs tool for troubleshooting and service arrangements.
The US PS5 hardware warranty lasts one year from the original purchase date and covers defects in materials or workmanship. It excludes damage caused by accidents, misuse, unauthorized service or opening the console by someone who is not Sony or an authorized provider.
That means a port damaged by a fall, forced cable or accidental pull may not qualify as a free warranty repair.
Sony also states that service may involve repair or replacement with a factory-recertified console. Settings or stored content may be affected, so backing up available data before service is sensible.
How Much Does uBreakiFix Charge?
uBreakiFix does not show one fixed national price for this job on its public PS5 HDMI service page.
It offers a free diagnostic and cost evaluation. Its page also states that most repairs include a one-year limited warranty and that some jobs may be completed the same day. Request the price from your selected store before leaving the console.
Does Best Buy or Geek Squad Repair PS5 HDMI Ports?
Best Buy publishes gaming controller checker services, protection-plan information, and repair scheduling options, but its public service page does not list a nationwide HDMI replacement price.
Contact your local store and ask whether it can:
- Diagnose the console
- Perform the motherboard repair
- Send the PS5 to another service center
- Replace the console under a protection plan
- Provide a quote before work begins
Best Buy’s current gaming-services page focuses on setup, support, protection plans, and repair or replacement scheduling rather than a fixed HDMI repair menu.
Does GameStop Fix PS5 HDMI Ports?
GameStop does not publish a standard nationwide PS5 HDMI port repair price on the current product and service pages reviewed for this article.
A store may offer trade-in, replacement or local guidance, but you should not assume it performs microsoldering repairs. Call the location and ask directly before taking the console in. GameStop’s current PS5 pages mainly cover console sales, trade options and basic HDMI information.
For the related PS5 display or hardware issue, see our PS5 overheating guide.
How Long Does the Repair Take?
A clean local replacement may be completed the same day or within one or two business days.
Mail-in work takes longer because of shipping. Advanced trace or chip damage can also extend the job.
Current service listings show a wide range:
| Repair type | Possible turnaround |
|---|---|
| Local clean port replacement | Same day to two business days |
| Trace or pad repair | Two to several business days |
| Mail-in repair | Several days plus shipping |
| Sony service | Depends on the repair tool and current service load |
uBreakiFix says many repairs are completed as soon as the same day. Healix lists one to two days for many PS5 jobs. PlayStation’s US hardware-support page currently warns of service delays and extended turnaround times, so official service may take longer.
Treat any turnaround as an estimate until the console has been inspected.
Does PS5 Slim or PS5 Pro Cost More?
The exact model may affect parts availability and disassembly time, but board damage normally has a larger effect on price.
Some repair businesses use the same rate across all PS5 models. BadgerLayer lists $189 for HDMI replacement on all PS5 models, while Iron Point includes PS5 Pro in its $189 service.
Ask the shop to confirm support for your exact model before shipping or dropping it off:
- Original PS5 Disc Edition
- Original PS5 Digital Edition
- PS5 Slim Disc Edition
- PS5 Slim Digital Edition
- PS5 Pro
Do not order a replacement part until you have matched it to the console and motherboard revision.
Should I Buy a PS5 HDMI Port Repair Kit?
A kit can include the replacement connector, flux, solder, or small hand tools.
It does not provide the experience needed to complete the repair.
A proper replacement may require:
- Full console disassembly
- A hot-air rework station
- A microscope
- Temperature control
- Board preheating
- Fine soldering tools
- Trace-repair skill
- Equipment for output testing
A basic soldering iron and a replacement connector are not enough for most beginners.
Can I Replace the Port Myself?
It is possible, but this is not a beginner soldering job.
The main risk is not failing to install the new port. The bigger risk is pulling off pads, overheating the board, bridging pins, or knocking nearby components loose.
Sony’s warranty terms also exclude damage caused by unauthorized service or by opening the console outside Sony or an authorized provider.
DIY makes sense only when you already have board-repair experience, the right equipment and a clear understanding that the console may become harder or more expensive to fix afterward.
Will a Repaired Port Still Support 4K at 120Hz?
A properly installed connector and healthy signal circuit should support the video modes the console was designed to output.
Sony confirms that the PS5 supports HDMI 2.1 features and 4K at 120Hz when paired with a compatible screen and setup.
Ask the repair shop how it tests the console. A basic 1080p picture test may confirm that video is present, but it does not prove every high-bandwidth mode has been checked.
Useful questions include:
- Was the output tested at 4K?
- Was HDR tested?
- Was the connection checked for flickering?
- Was the cable moved gently to check stability?
- Was sound tested over HDMI?
- Was a compatible high-refresh-rate display used?
A shop should not promise 4K at 120Hz unless it has the display and equipment needed to test it.
To test the related hardware in your browser, use our browser-based GPU test.
Is It Worth Repairing?
Repair usually makes sense when:
- The console powers on normally
- The fault appears limited to HDMI
- The quote is well below the cost of replacement
- The motherboard is otherwise healthy
- The shop provides a warranty
- You prefer to keep the same console
Think more carefully when:
- The PS5 has severe liquid damage
- The board has several unrelated faults
- A previous repair badly damaged the HDMI area
- The quote approaches the cost of a reliable replacement console
- The shop will not warranty the work
- The diagnosis remains uncertain
Do not compare the repair bill only with the price of a new console. Also compare it with the current cost and condition of a used or refurbished replacement.
How to Prevent the Port From Breaking Again
Unplug the HDMI cable before moving the PS5.
Insert and remove the connector in a straight line. Do not pull it sideways or use the cable to rotate the console.
Leave some slack behind the system. A tight cable can place constant pressure on the connector.
Keep the console on a stable surface where children, pets and feet cannot catch the cable.
When transporting the PS5:
- Remove every cable.
- Protect the rear ports.
- Do not pack the console with a cable still inserted.
- Avoid placing weight against the back panel.
- Reconnect the cable only after the system is in its final position.
Questions to Ask Before Approving the Job
Use this checklist with any local or mail-in repair service:
- Is this a fixed price or a starting price?
- Does it include parts, labor, and diagnostics?
- Are lifted pads and broken traces included?
- Is the work completed in-house?
- Will you contact me before adding charges?
- Is tax included?
- Is return shipping included?
- What happens if the repair fails?
- How long is the warranty?
- What video modes will be tested?
- Will I receive the same console back?
- Is there a fee if I decline the repair?
The clearest quote is not always the lowest quote. It is the one that tells you what happens when the damage is worse than expected.
Final Cost Checklist
Before handing over the console, confirm:
| Cost item | Confirmed? |
|---|---|
| Diagnostic fee | Yes / No |
| Replacement port included | Yes / No |
| Labor included | Yes / No |
| Pad or trace repair included | Yes / No |
| Tax included | Yes / No |
| Shipping included | Yes / No |
| Extra work needs approval | Yes / No |
| Repair warranty provided | Yes / No |
| Video and sound testing included | Yes / No |
| Same console will be returned | Yes / No |
For a standard job, expect roughly $120 to $200. A $99 advertised repair may be real, while a $200-plus quote may also be fair when the motherboard needs more work. The shop should be able to show what changed the price.
FAQS
How much does a typical PS5 HDMI port repair cost?
Most US shops charge about $120 to $200. Published prices checked in July 2026 ranged from $99 for some local services to $189 for several fixed-price or mail-in options.
Where can I find affordable PS5 HDMI port repair near me?
Look for a local business that lists microsoldering, motherboard repair, or board-level console work. Ask for a written quote and confirm whether the repair is done at that location.
Why do some shops advertise very low starting prices?
The price may cover only a clean connector replacement. Lifted pads, broken traces, diagnosis, tax, or shipping may cost extra.
Does GameStop repair broken PS5 HDMI ports?
GameStop does not publish a standard nationwide HDMI replacement service or price on its current PS5 pages. Contact the individual store before visiting.
Can Sony repair a physically damaged port?
Sony can assess the console through its repair system, but accidental damage is excluded from the standard one-year hardware warranty. You may receive a paid service option depending on the case.
Is a PS5 HDMI repair kit suitable for beginners?
No. The connector is soldered to the motherboard and normally requires hot-air rework, magnification and board-repair experience.
How much does the replacement part cost?
The connector itself is usually much cheaper than the completed repair. Most of the bill covers diagnosis, disassembly, microsoldering, reassembly and testing.
Can a new port fix a PS5 No Signal error?
Yes, when the connector is the cause. It will not solve a bad cable, display problem, incorrect video setting or failed HDMI circuit.
Does the repair require motherboard soldering?
Yes. The HDMI connector is attached directly to the PS5 motherboard.
Will it cost more if the pads or traces are damaged?
Usually. Rebuilding copper connections takes more time and skill than installing a port on an undamaged board.
How long does the repair normally take?
A straightforward local job may take the same day or one to two business days. Mail-in, trace and chip repairs usually take longer.
Is the repair covered by Sony’s warranty?
Material or workmanship defects may be covered during the one-year warranty period. Accidents, misuse, unauthorized opening, and unauthorized service are excluded.
Will the repaired connector still support 4K and 120Hz?
It should when the port and signal path are repaired correctly. Sony confirms that PS5 supports HDMI 2.1 and 4K 120Hz output with compatible equipment. Ask how the shop verifies higher video modes.
Does the repair erase saved data?
A connector replacement does not normally require a factory reset, but no service is risk-free. Sony warns that official service may change settings, replace the console or lead to data loss. Back up available data before sending the system for service.
Why did the shop increase the original quote?
The technician may have found lifted pads, broken traces, chip damage, or evidence of a previous failed repair after opening the console. Ask for photos and approval before added work.
Should I use a local or mail-in service?
Use a local shop when it has proven board-level experience and clear warranty terms. A mail-in specialist may be better when no qualified technician is available nearby.
