PS5 Controller Repair: Diagnose the Problem Before You Pay for a Fix
“By Airam Chandler”
Last updated: August 16, 2026
A PS5 DualSense controller can often be repaired. Stick drift, dead buttons, charging problems, broken triggers, connection faults, and weak batteries do not automatically mean you need a new controller. Start by testing the controller and trying Sony’s reset and firmware steps. If the same input still fails afterward, you can decide whether cleaning, a replacement part, professional repair, or a new controller makes more sense.
Test Your PS5 Controller Before Repairing It
Don’t start by buying a repair kit.
Start by finding out what is actually failing.
Connect your DualSense to a PC by USB or Bluetooth and open the controller test. Press every button, move both sticks slowly through their full range, and squeeze L2 and R2 from rest to full travel.
Then put the controller down and stop touching it.
If an analog stick keeps sending movement while untouched, you may have stick drift. If a button stays active after you release it, fails completely, or works only sometimes, you have narrowed the problem to that input.
Also, test the controller in more than one game. A problem that appears in only one game may come from that game’s controller settings or dead zone rather than a broken controller.
Testing first gives you a baseline. Save or remember the bad input so you can run the same test after the repair.
PS5 Controller Repair Quick Diagnosis
If your character or camera moves without touching the stick, suspect stick drift, contamination, calibration error or analog-stick wear.
If X, Circle, Square, Triangle, or the D-pad does not respond, check for dirt first. Persistent failure can point to the conductive contact, membrane, ribbon connection, or internal damage.
If L2 or R2 feels loose, weak, or different from the other trigger, the adaptive-trigger assembly or another trigger component may be damaged.
If the controller does not charge, test another known-good data-and-power USB-C cable before blaming the controller. A weak battery, dirty port, damaged USB-C connection or internal power problem can produce similar symptoms.
If it disconnects randomly, update the controller, reset it, and test it over USB. If wired play works but wireless play does not, Bluetooth or pairing becomes more likely.
If it doesn’t turn on at all, start with charging, cable, and reset checks before opening it.
If haptic feedback or vibration has stopped, make sure the feature is enabled and test it in another supported game before assuming a motor has failed.
Try These Fixes Before Opening the Controller
Sony’s current DualSense troubleshooting process starts with a reset.
Turn off the PS5. Disconnect the controller. Find the small recessed reset button on the back near the Sony logo. Use a pin or similar tool and hold the button for at least five seconds.
Reconnect the controller to the PS5 with a USB cable and press the PS button.
Sony also recommends keeping the controller device software current. On PS5, go to:
Settings > Accessories > Controller (General) > DualSense Wireless Controller Device Software
If the problem disappears after the reset or update, stop there. You do not need to take the controller apart.
PS5 Controller Stick Drift Repair
Stick drift means the controller reports analog-stick movement while you are not intentionally moving the stick.
In a game, that can look like a camera slowly rotating, a character walking sideways, a car steering without input, or a menu moving by itself.
The first job is to determine whether you are seeing a small calibration/deadzone issue or a persistent hardware fault.
Test the stick while it is untouched. Then rotate it slowly through its complete range and let it snap back to center several times. Stick drift tester.
Start With Cleaning
Dust or contamination around the stick can sometimes affect movement.
Power the controller off before cleaning it.
Clean around the base of the thumbstick carefully. Do not pour liquid into the controller.
If the problem disappears after cleaning and remains gone during repeated testing, you may be finished.
If it returns quickly, the problem may be deeper inside the joystick assembly.
iFixit’s DualSense V1 drift guide, for example, involves opening the controller and cleaning internal joystick components with high-purity isopropyl alcohol. The guide is rated moderate rather than beginner-level and estimates about 40 minutes.
A Larger Deadzone Can Hide Mild Drift
Some games let you increase the analog-stick dead zone.
A dead zone tells the game to ignore a small amount of movement around the stick’s center position.
That can make very light drift less noticeable, but it does not rebuild worn hardware.
If you keep increasing the dead zone every few weeks because the drift keeps getting stronger, treat that as a warning that the stick itself may need attention.
For a detailed explanation, see our Controller Deadzone guide.
When Stick Drift Needs Hardware Repair
A standard DualSense joystick is not a simple plug-in part.
The analog-stick assembly is attached to the controller’s circuit board. Replacing the complete module can require desoldering and soldering work. iFixit specifically notes that joystick replacement is much more involved than opening the controller to reach many of its other components.
That means a cheap screwdriver kit alone does not automatically make you ready for a complete stick replacement.
You may need:
- A precision Phillips screwdriver
- plastic opening tools
- tweezers
- soldering equipment
- flux
- desoldering braid or another desoldering method
- a compatible replacement module
- proper calibration after installation
If you have never soldered on a small PCB, practicing for the first time on your working DualSense is a risky place to start.
Hall Effect and TMR Stick Upgrades
Some repair shops and DIY repairers replace conventional joystick assemblies with magnetic-sensing alternatives marketed as Hall Effect or TMR modules.
The attraction is reduced dependence on the physical contact surfaces used in traditional potentiometer-based sensing.
That does not mean every magnetic replacement is automatically better.
Part quality, controller revision, installation quality and calibration all matter.
A poorly installed premium module can perform worse than a properly installed standard replacement.
If a repair shop offers Hall Effect or TMR installation, ask:
- Which exact module are you installing?
- Will both sticks be calibrated after installation?
- Will I receive a repair warranty?
- Will you test the circular range and center position before returning it?
Don’t pay more just because the words “Hall Effect” appear in the listing.
PS5 DualSense Button Repair
A button that feels sticky is different from a button that produces no electrical input.
For sticky buttons, start by checking around the button for residue or debris.
If the button moves normally but does not register in the Gamepad Tester, the problem may be inside the controller.
iFixit’s current DualSense troubleshooting guidance separates simple debris and software issues from physical button damage. It recommends cleaning and firmware troubleshooting before moving to internal repair.
If several buttons stop working together, the fault may not be the individual plastic buttons at all. A shared conductive layer, cable or board connection can affect multiple inputs.
That is why testing every button before disassembly matters.

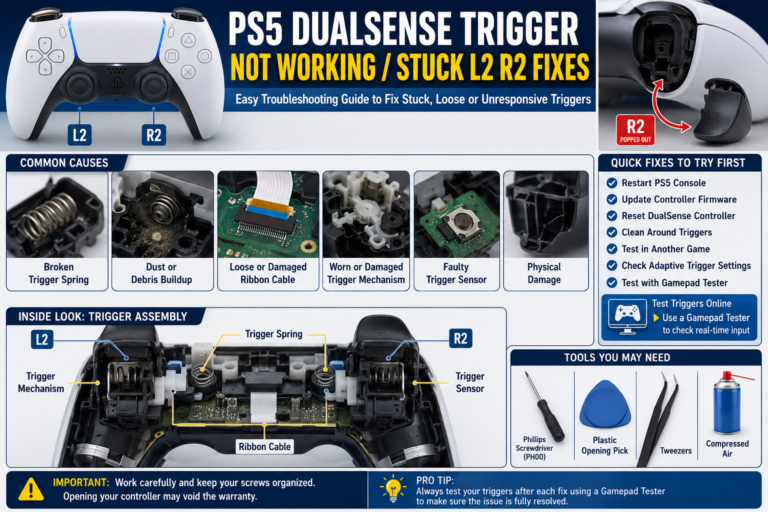

L2 and R2 Adaptive Trigger Repair
DualSense adaptive triggers contain more moving parts than a basic controller trigger.
Common symptoms include:
- a trigger that suddenly feels loose
- One trigger feeling different from the other
- A trigger that still moves but does not register correctly
- unexpected clicking or grinding
- Adaptive resistance no longer working
- Before taking it apart, turn the trigger effect off temporarily in PS5 settings and test the trigger input itself.
- If the Gamepad Tester shows a smooth analog value from rest to full press, the input sensor may still be functioning even if the adaptive resistance mechanism is not.
- If the electrical input is also missing or erratic, the problem may be deeper.
iFixit’s DualSense repair library includes separate work for the trigger assembly, which is another reason not to treat every trigger complaint as the same repair.
PS5 Controller Charging and USB-C Repair
A controller that will not charge does not automatically have a bad charging port.
Try a different USB-C cable first.
Make sure it is capable of both data and power, not just charging.
Try another PS5 USB port.
Connect the controller directly and check whether it pairs and receives power.
Sony notes that not every USB charger is capable of charging the DualSense correctly.
Inspect the USB-C port with the controller disconnected.
Look for obvious debris, a bent connection or a port that feels unusually loose.
Do not push metal tools into, a powered USB-C port.
If charging changes when the cable is held at an angle, the connector may need inspection by someone comfortable with board-level repair.
PS5 Controller Battery Repair
Battery trouble commonly appears as:
very short runtime
Controller shutting down unexpectedly
Controller working over USB but poorly on battery
Controller refusing to stay powered after charging
Before replacing the battery, eliminate the cable and charging-source possibilities.
A battery replacement involves opening the controller but is generally different from a soldered joystick-module job. iFixit lists the battery as a separate replacement procedure in its DualSense repair library.
Use a battery intended for your controller version rather than ordering only by the words “PS5 controller battery.”
Check Your DualSense Version Before Ordering Parts
This step is easy to miss.
Sony has revised the internals of the DualSense during its life.
Although regular DualSense controllers can carry the CFI-ZCT1W model designation, internal board versions can differ.
iFixit currently documents multiple generations, including BDM-010, BDM-020, BDM-030, BDM-040 and BDM-050 families, and warns that repair procedures can vary between versions.
Check your controller before ordering internal parts.
A replacement that looks right in a product photo is not enough.
Standard DualSense vs DualSense Edge Repair
Do not follow standard DualSense joystick-replacement instructions if you own a DualSense Edge.
The Edge was specifically designed with replaceable stick modules.
Sony says the left and right Edge modules are interchangeable and can be removed by taking off the front cover, raising the module-release lever and sliding the module out.
No joystick desoldering is required for that normal Edge module replacement.
That is a major repairability difference.
With a standard DualSense, complete joystick-module replacement can become a soldering job.
With a DualSense Edge, a failing stick module can be replaced as a user-serviceable module.
What Comes in a PS5 Controller Repair Kit?
“PS5 controller repair kit” can mean several completely different products.
A basic opening kit may contain:
precision screwdrivers
plastic picks
spudgers
tweezers
replacement thumbstick caps
A stick-replacement kit may add analog modules.
A soldering-focused kit may include soldering and desoldering accessories.
Before buying a kit, ask what repair you are actually performing.
If all you need is a new thumbstick cap, there is no reason to buy soldering equipment.
If the entire analog module needs replacement, a screwdriver-only kit will not solve the difficult part of the job.
How to Repair a PS5 Controller Yourself
Use this order:
1. Test the controller.
Identify the exact bad input.
2. Test another game or device.
Make sure the problem follows the controller.
3. Update the DualSense software.
Do this before changing hardware.
4. Reset the controller.
Use Sony’s documented reset method.
5. Clean externally.
Remove visible contamination without flooding the controller.
6. Check warranty status.
Do this before opening the controller.
7. Identify your controller revision.
Do not guess part compatibility.
8. Open it only if the repair matches your skill level.
Battery, shell and button work are not the same difficulty as desoldering a joystick or repairing a USB-C connector.
9. Reassemble carefully.
Do not force connectors or housing clips.
10. Test every function afterward.
Do not test only the component you replaced.
Sony PS5 Controller Repair and Warranty
If the controller may still be under warranty, check Sony before opening it.
Sony Interactive Entertainment’s current U.S./Canada accessory warranty covers defects in materials and workmanship for one year from the date of purchase for the original purchaser, subject to its stated conditions and exclusions.
Sony may repair or replace an eligible product at its option.
Proof of purchase is important.
Sony’s Hardware & Repairs support site includes controller troubleshooting and its repair workflow.
If you are still within the warranty period, a DIY internal repair should not be your first move.
How Much Does PS5 Controller Repair Cost?
There is no single national PS5 controller repair price.
The cost depends on what failed.
Cleaning is different from replacing a battery.
A battery is different from a soldered joystick.
A joystick is different from a damaged USB-C connector or motherboard.
Current U.S. repair listings also show how much the market varies. Some specialist stick-drift services advertise prices in roughly the $25 to $40 range before possible shipping or extra work, while modified-controller and more complex services can cost more. Treat those numbers as market examples, not a guaranteed quote.
Always ask for the full price including parts, labor, calibration, return shipping and warranty.
uBreakiFix PS5 Controller Repair Cost
uBreakiFix by Asurion offers controller repairs, but it does not publish one universal national price for every controller repair.
The company says pricing depends on the controller, problem and parts availability. It offers a diagnostic and cost estimate before the repair proceeds.
It also says many controller repairs can be completed the same day and most covered repairs include a one-year limited warranty, subject to its terms.
So if you are searching for an exact “uBreakiFix PS5 controller repair cost,” the correct answer is:
Get the quote for your specific controller and fault rather than relying on a generic national number.
PS5 Controller Repair Near Me
When searching for a local repair shop, don’t ask only:
“Do you repair PS5 controllers?”
Ask what they repair.
For stick drift, ask whether they:
diagnose the controller first
replace potentiometers or complete stick modules
perform soldering in-house
calibrate the sticks afterward
test both analog sticks after repair
provide a warranty
For a charge test issue, ask whether they perform UProvideard-level work or simply replace assemblies.
For trigger problems, ask whether they work on DualSense adaptive-trigger assemblies.
A phone-repair shop that accepts game controllers is not automatically a controller specialist.
PS5 Controller Repair Near Georgetown or Washington, DC
If you are in Georgetown or elsewhere in Washington, DC, use the same diagnostic process before traveling to a shop.
Test the controller first and tell the technician exactly what fails.
Instead of saying:
“My controller is broken.”
say:
“The left analog stick sends input while untouched.”
or:
“R2 reaches only part of its analog range.”
or:
“The controller works over USB but disconnects over Bluetooth.”
That gives the shop something useful to diagnose.
Current Washington, DC repair pages from uBreakiFix advertise game-console and PS5 controller repair, diagnostics and repair estimates, but individual repair availability and parts can vary by location. Call before traveling with the controller.
For a controller that may still be covered by Sony’s warranty, check PlayStation Repairs before paying a third-party shop.
Is PS5 Controller Repair Worth It?
Usually, compare three things:
Repair price
How much confidence you have in the replacement controller
A straightforward battery, button, or stick error can make sense when the rest of the controller is healthy.
Repair becomes less attractive when several unrelated systems are failing at once, there is serious liquid or motherboard damage, or the repair quote approaches the price of a replacement controller.
Also consider the controller itself.
A limited-edition shell, custom controller or otherwise expensive model may be worth repairing even when the raw numbers are close.
When Should You Replace the Controller Instead?
Replacement becomes more reasonable when:
the circuit board has major physical damage
liquid damage affected Theeral systems
multiple major components haLiquidled
a previous repair badly damaged multiplier pads or connectors
The repair quote is close to a replacement
you do not trust the available replacement parts
If only one stick, one button fails or the battery is tired, do not assume the entire controller is finished.
Diagnose it first.
Test the Controller Again After Repair
This step is part of the repair, not an optional extra.
Reconnect the controller to the PadProTools Gamepad Tester.
Check both analog sticks.
Leave them untouched and watch the center position.
Rotate them through their full range.
Test every face button.
Test the D-pad.
Press L1 and R1.
Slowly press L2 and R2.
Test L3 and R3.
Check the connection.
Then launch a game and verify the problem under real gameplay conditions.
A repair is not finished because the controller powers on.
It is finished when the failed input works correctly and you have confirmed that nothing else was disturbed during the repair.
How This Guide Was Verified
For this August 2026 update, we checked current PlayStation U.S. controller support, PlayStation Hardware & Repairs and Sony’s U.S./Canada accessory warranty information.
We compared those instructions with current iFixit DualSense repair, troubleshooting and model-identification resources.
We also checked current repair-service information for professional and mail-in controller repair options and reviewed repair-focused YouTube material to identify common real-world diagnostic and disassembly workflows.
We did not physically repair a DualSense controller specifically for this update. Hardware procedures described here are therefore source-verified guidance rather than a claim of hands-on testing.
Where a repair requires soldering, board-level diagnosis or internal component replacement, we say so rather than presenting it as an easy universal home fix.
FAQS
Can a PS5 controller be repaired?
Yes. Many DualSense faults can be repaired, including stick problems, buttons, batteries, trigger components and some charging faults. The difficulty depends on the failed component. A complete analog-stick-module replacement on a standard DualSense can require soldering.
How much does PS5 controller repair cost?
There is no fixed national rate. Simple stick-drift services can sometimes be found around the $25 to $40 range, while more complex repairs can cost more. Get a quote based on the exact fault, parts, labor, shipping and warranty.
Can PS5 controller stick drift be repaired?
Yes. Mild symptoms caused by dirt or calibration may improve without replacing the joystick. Persistent wear may require potentiometer or complete joystick-module work. Test the controller after every attempted fix.
Does resetting a PS5 controller fix stick drift?
A reset can fix some software or communication problems, so it is worth trying first. It cannot repair physically worn joystick components.
Can I repair PS5 stick drift without soldering?
Sometimes. Cleaning, resetting, firmware updates and game deadzone adjustments do not require soldering. Replacing the complete soldered joystick module in a standard DualSense is a different job and usually requires soldering equipment.
Does Sony repair PS5 controllers?
Sony directs customers with unresolved DualSense problems to its PlayStation Repairs system. Its U.S./Canada accessory limited warranty covers qualifying defects for one year from purchase for the original purchaser, subject to the warranty terms.
How much does uBreakiFix charge for PS5 controller repair?
uBreakiFix does not publish one universal price for every PS5 controller problem. Its controller-repair information says pricing varies based on the controller, issue and parts, with a diagnostic and estimate provided for the specific repair.
Is a PS5 controller repair kit worth buying?
Yes, when the kit matches the repair. An opening kit can help with shells, cleaning and some replaceable components. A screwdriver kit alone is not enough for a soldered joystick-module replacement.
Can I replace a DualSense Edge stick myself?
Yes. Sony designed the DualSense Edge with replaceable stick modules. Sony provides an official process for removing the front cover, releasing the module and installing another compatible Edge stick module.
Are standard DualSense sticks replaceable like DualSense Edge sticks?
No. Do not confuse the two designs. Standard DualSense joystick repair can require internal soldering. The Edge has specifically designed removable stick modules.
Should I use Hall Effect or TMR sticks when repairing drift?
They can be useful upgrade options, but the sensor name alone does not guarantee a good repair. Module quality, controller compatibility, soldering quality and calibration matter. Ask the installer exactly what part is being used and how the controller will be calibrated and tested.
How do I find PS5 controller repair near me?
Search for game-console or controller repair specialists, then call and ask whether they perform the exact repair you need. For drift, ask about analog-stick replacement, soldering, and calibration rather than simply asking whether they “fix PS5 controllers.”
Should I repair or replace my DualSense?
Repair usually makes more sense when one repairable component has failed and the quote is well below replacement cost. Replacement becomes more reasonable when several systems have failed, the motherboard is badly damaged or repair cost approaches the cost of another controller.
How do I know whether the repair actually worked?
Run the same test you performed before the repair. Check stick center position, full analog range, every button, both triggers and the connection. Then test it in a game. A successful repair should fix the original problem without creating another one.
How to Pair a PS5 Controller to PS5, PC, Mac, iPhone, and Android?
To connect a Pair a PS5 Controller to a PS5, turn on the console, attach the DualSense with a USB cable that supports data, and press the PS button. For a PC, Mac, iPhone, iPad, or Android device, hold the Create and PS buttons together until the light bar flashes. Open Bluetooth settings and select the controller tester online.
